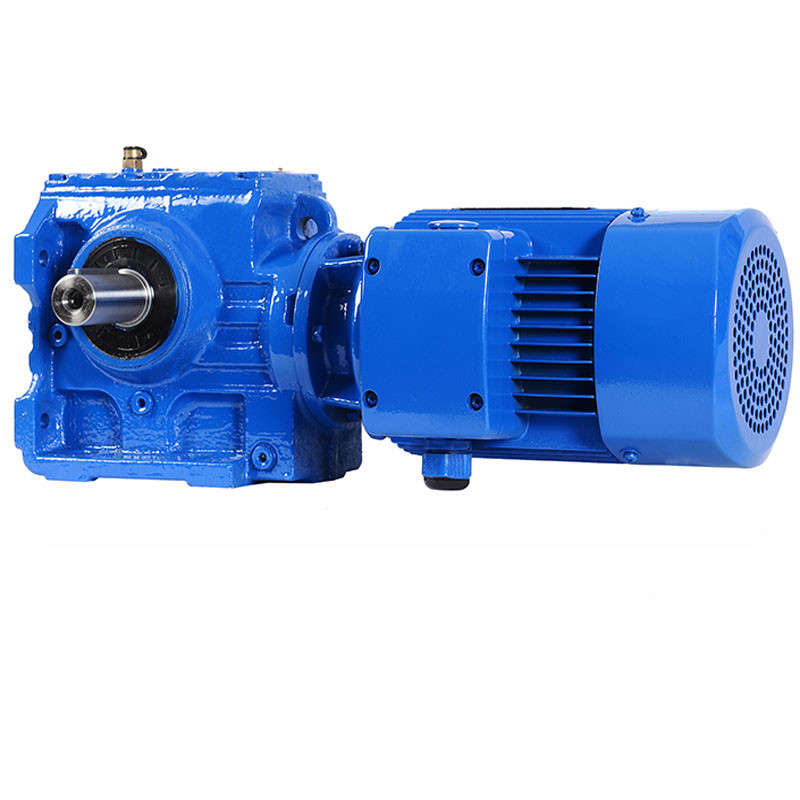

Right Angle Inline Helical Gear Speed Reducer Flange Mounted

Right Angle Inline Helical Gear Speed Reducer Flange Mounted

  • Right Angle Inline Helical Gear Speed Reducer Flange Mounted
Right Angle Inline Helical Gear Speed Reducer Flange Mounted
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Output Torque: 10-4890(N.M) Output Speed: 2.5-360Rpm
Mounting Position: Horizontal Or Flange-mounted Heat Treatment: Carburizing
Gear Material: 20 CrMnTi
High Light:

Hypoid inline speed reducers

,

Hypoid helical gear speed reducer

,

Flange mounted inline speed reducers

Industrial Right Angle S Series Helical Gear Worm Reducer S/SA/SAF/SAZ/SF


Product advantages
1. There is a combination of helical gear and worm gear to improve the torque and efficiency of the machine. This series of products has complete specifications, wide speed range, good versatility, adapt to various installation methods, performance, safety and reliability, long service life, and implementation of international standards.
2. The surface of the body has concave and convex heat dissipation, strong vibration absorption, low temperature rise and low noise.
3. The machine has good sealing performance and strong adaptability to the working environment.
4. The machine has high transmission precision, especially suitable for working in places with frequent starting. It can be connected with various types of reducers and equipped with various types of motor drives. It can be installed in the 90-degree transmission operation position.
5. The key components of the geared motor adopt high wear-resistant materials and have special heat treatment. It has the characteristics of high processing precision, stable transmission, small volume bearing capacity and long service life.
6. The reducer can be equipped with various types of motors to form an electromechanical integration, which fully guarantees the quality characteristics of the products.





1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.



R Series Helical Gear Reducer

Project
BKM SERIES
BMRV SERIES
Transmission
Hypoid Gear
Worm wheel,worm shaft
Transmission efficiency
High(about:90%-92%)
Low(about:50%-85%)
Ratio range
2-stages:7.5-60
3-stages:50-300
5-100
Bearing Capacity
1-1.5
1
Temperature-rise
30℃
60℃
Running Temperature
50-60℃
70-80℃
The sealing reliablity
High
Low
Life
Long
Short
Self-locking
Non
Some ratio
Extension shaft
Non
Some



1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



FAQ

Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
