Place of Origin: | China |
Brand Name: | Shuowei |
Certification: | CE SGS ISO9001 |
Model Number: | R series |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Case; Customized Packing Is Acceptable |
Delivery Time: | 5-8 Work Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 Piece Per Month |
Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Certification: | IECEE |
---|---|---|---|
Output Torque: | 85~18000N.m | Lubricant: | Shell Omala220 Or Equivalent |
Input Speed: | 1440rpm | Input Format:: | IEC Flange, Direct With Motor, Shaft Input |
High Light: | Equivalent Helical Gear Speed Reducer,380V Helical Gear Speed Reducer,36000N.M helical motor |

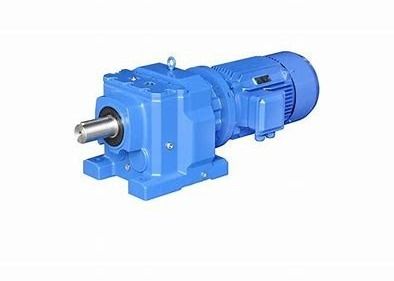

Equivalent Helical Gear Motor Speed Reducer
1. Easy integration into all your applications
2. Full rated power and output speed are available
3. Low noise running and highly efficient gearing
4. Dust-tight and water-proof,can be used outdoors without additional enclosure
5. Total flexibility in installation options,including base,foot,face and flange solutions
Mounting
|
solid shaft/hollow shaft/flange/torque arm
|
Efficiency
|
>95%
|
Housing Material
|
HT250 cast iron
|
Gear Material
|
20CrMnTi
|
Surface Hardness of Gears
|
HRC59-62
|
Input / Output Shaft Material
|
40Cr/HBS241-246
|
Machinery Precision of Gears
|
Grade 6/accurate frinding
|
Heat Treatment
|
Carburizing and Quenching
|
Brand of Bearings
|
NSK/SKF/HVL
|
Brand of Oil Seal
|
NAK/NOK
|
Noise (MAX)
|
65-70dB/160
|
Vibration
|
≤ 20μm
|
The features of R Series Foot Mounted Speed Reducer
1. Compact structure, modular design
2. Single-stage, two-stage and three-stage sizes
3. High reduction ratio and torque density
4. Long service life
5. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, UDL Series)
Models
|
Output Shaft Dia.
|
Input Shaft Dia.
|
Power(kW)
|
Ratio
|
Max. Torque(Nm)
|
R/RF18
|
20mm
|
-
|
0.18~0.75
|
3.83~74.84
|
85
|
R/RF28
|
25mm
|
16mm
|
0.18~3
|
3.37~135.09
|
130
|
R/RF38
|
25mm
|
16mm
|
0.18~3
|
3.41~134.82
|
200
|
R/RF48
|
30mm
|
19mm
|
0.18~5.5
|
3.83~176.88
|
300
|
R/RF58
|
35mm
|
19mm
|
0.18~7.5
|
4.39~186.89
|
450
|
R/RF68
|
35mm
|
19mm
|
0.18~7.5
|
4.29~199.81
|
600
|
R/RF78
|
40mm
|
24mm
|
0.18~11
|
5.21~195.24
|
820
|
R/RF88
|
50mm
|
28mm
|
0.55~22
|
5.36~246.54
|
1550
|
R/RF98
|
60mm
|
38mm
|
0.55~30
|
4.49~289.6
|
3000
|
R/RF108
|
70mm
|
42mm
|
2.2~45
|
5.06~245.5
|
4300
|
R/RF138
|
90mm
|
55mm
|
5.5~55
|
5.51~223.34
|
8000
|
R/RF148
|
110mm
|
55mm
|
11~90
|
5.00~163.46
|
13000
|
R/RF168
|
120mm
|
70mm
|
11~160
|
8.77~196.41
|
18000
|
1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.
R Series Helical Gear Reducer
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
FAQ
Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
