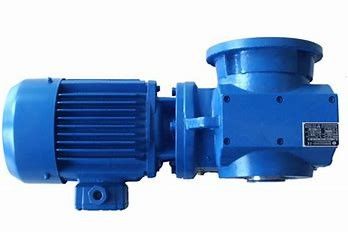

4-187rpm Mini Bevel Helical Worm Gear Reducer 100-750N.M

4-187rpm Mini Bevel Helical Worm Gear Reducer 100-750N.M

  • 4-187rpm Mini Bevel Helical Worm Gear Reducer 100-750N.M
4-187rpm Mini Bevel Helical Worm Gear Reducer 100-750N.M
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Output Torque:: 100~750N.m Product Name: Helical Gear Motor
Mounting Position: Horizontal Or Flange-mounted Heat Treatment: Carburizing
Gear Material: 20 CrMnTi Output Speed: 4~187RPM
High Light:

187rpm Helical Worm Gear Reducer


100n.m Helical Worm Gear Reducer


750N.M bevel helical reducer

Helical Hypoid Gear Reducer Price Mini Bevel Gearbox Worm Drive Shaft Gear Box Zero Backlash Worm Reducer Zero Backlash


The average range of the helix angle is around fifteen to thirty degrees. The thrust load is affected primarily by the tangent of the helix angle. When a large amount of thrust is generated, the thrust load is supported by the bearings. When mounted on perpendicular shafts, the helical reducer can be used to adjust the rotation angle by ninety degrees. Because of the thrust that is produced when the helical gears turn, the helical reducer is ideal for heavy load operations. Also, because of the quiet feature, the helical reducers are used frequently in automation systems such as lifting or pulling operations.

There are different types of speed reducers that a motor or a machine can apply, and each of them has its own pros and cons. In addition to the helical reducers, there are also spur gear reducers, worm reducers, bevel gear, etc. They are all designed for controlling the speed and torque output of a system while the usage may vary because of the distinctive features each of them has.


The features of R Series Foot Mounted Speed Reducer

1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)R K S F helical gear motor



1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.


R Series Helical Gear Reducer

Hypoid Gear
Worm wheel,worm shaft
Transmission efficiency
Ratio range
Bearing Capacity
Running Temperature
The sealing reliablity
Some ratio
Extension shaft


1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
