| Place of Origin: | China |
| Brand Name: | Shuowei |
| Certification: | CE SGS ISO9001 |
| Model Number: | R series |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case; Customized Packing Is Acceptable |
| Delivery Time: | 5-8 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 Piece Per Month |
| Installation Form:: | Horizontal | Category: | Gear Reducer |
|---|---|---|---|
| Mounting Position: | Horizontal Or Flange-mounted | Heat Treatment: | Carburizing |
| Gear Material: | 20 CrMnTi | Output Speed: | 2.5-360Rpm |
| High Light: | RF Series helical gear reducer,Flange Mounted helical gear reducer,Horizontal worm helical gearbox |
||

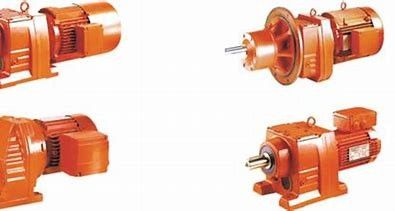

Factory Speed Reducer RF Series Flange Mounted Helical Worm Gear Motor Reducer
A worm gear reducer is one type of reduction gear box which consists of a worm pinion input, an output worm gear, and features a right angle output orientation. This type of reduction gear box is generally used to take a rated motor speed and produce a low speed output with higher torque value based on the reduction ratio. They often can solve space-saving problems because the worm gear reducer is one of the sleekest reduction gearboxes available due to the small diameter of its output gear.
The features of R Series Foot Mounted Speed Reducer
1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)R K S F helical gear motor
1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.
R Series Helical Gear Reducer
Project | BKM SERIES | BMRV SERIES |
Transmission | Hypoid Gear | Worm wheel,worm shaft |
Transmission efficiency | High(about:90%-92%) | Low(about:50%-85%) |
Ratio range | 2-stages:7.5-60 3-stages:50-300 | 5-100 |
Bearing Capacity | 1-1.5 | 1 |
Temperature-rise | 30℃ | 60℃ |
Running Temperature | 50-60℃ | 70-80℃ |
The sealing reliablity | High | Low |
Life | Long | Short |
Self-locking | Non | Some ratio |
Extension shaft | Non | Some |
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
FAQ
Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
