Ratio 69 1400rpm Bwd3 XWD1 Horizontal Gearbox HT250

Ratio 69 1400rpm Bwd3 XWD1 Horizontal Gearbox HT250

  • Ratio 69 1400rpm Bwd3 XWD1 Horizontal Gearbox HT250
Ratio 69 1400rpm Bwd3 XWD1 Horizontal Gearbox HT250
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Certification: ISO9001, CCC Mounting Position:: Horizontal/Vertical Mounting
Housing Material: Cast Iron Ratio: 9-7569
Output Form:: Keyed Solid Shaft Output Input Form: Mounting Motor
High Light:

Ratio 69 Horizontal Gearbox

,

1400rpm Horizontal Gearbox

,

HT250 cycloidal gear motor

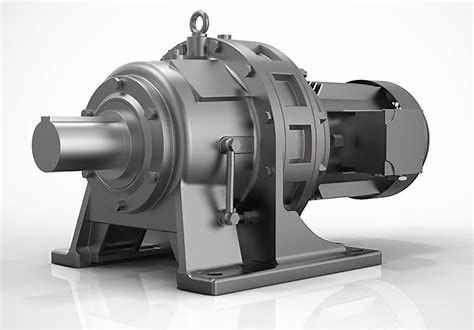

Ratio 69 1400rpm Horizontal Bwd3 XWD1cycloid Gear Ac Motor Speed Reducer Gearbox For Lifting




Horizontal Gear Reducer Main Features

◆ High speed ratio and high efficiency single-stage transmission can achieve a deceleration ratio of 1:87, and the efficiency is more than 90%. If multi-stage transmission is used, the deceleration ratio will be larger.
◆ Because planetary transmission principle is adopted, the input shaft and output shaft are on the same axis line, so that the machine model can get the smallest possible size.
◆ The number of meshing teeth of cycloidal needle teeth with smooth running noise and low cycloidal noise is more, the overlap coefficient is larger, and the mechanism of balancing machine parts makes the vibration and voice limited to a minimum.
◆ Reliable use and long service life because the main parts are made of high carbon chromium steel, high strength is obtained by quenching (HRC58-62), and rolling friction is used in some transmission contacts, so the service life is long.



Horizontal Gear Reducer​ Parameters:

Housing material HT250 high-strength cast iron
Housing hardness HBS190-240
Gear material 20CrMnTi alloy steel
Surface hardness of gears HRC58°~62 °
Gear core hardness HRC33~40
Input / Output shaft material 42CrMo alloy steel
Input / Output shaft hardness HRC25~30
Machining precision of gears accurate grinding, 6~5 Grade
Lubricating oil GB L-CKC220-460, Shell Omala220-460
Heat treatment tempering, cementiting, quenching, etc.
Efficiency 94%~96% (depends on the transmission stage)
Noise (MAX) 60~68dB
Temp. rise (MAX) 40°C
Temp. rise (Oil)(MAX) 50°C
Vibration ≤20µm
Backlash ≤20Arcmin



Horizontal Gear Reducer Advantages:
1. Large reduction ratio, 1-stage ratio 9~87, 2-stage ratio 121~1849, larger reduction ratio is available by 3-stage or multistage combinations
2. High efficiency, the average efficiency is over 90%
3. Compact structure, light weight
4. Stable and reliable operation, low noise
5. Long service life



Application: widely used in petroleum, environmental protection, chemical, cement, transport,textile, pharmaceutical, food, printing paint, lifting, mining, metallurgy, construction,papermaking, power generation ,pesticide ,environmental protection , coating,transportation ,new domestic logistics equipment and other industries.



1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High-quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



FAQ:

Q1. How can I choose the model that best meets my requirements?
A1. You can refer to our catalog to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameters, etc.

Q2. What information shall we give before placing a purchase order?
A2. a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor detail, etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

Q3. What industries are your gearboxes being used in?
A3. Our gearboxes are widely used in automatic machinery and equipment in textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tobacco, environmental protection, logistics and other fields.
