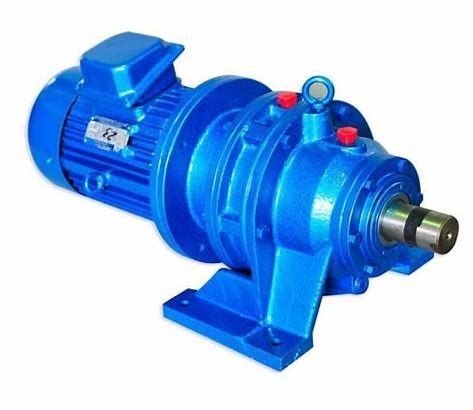

1 Stage 2 Stage AC Motor Horizontal Gearbox Foot Mounted

1 Stage 2 Stage AC Motor Horizontal Gearbox Foot Mounted

  • 1 Stage 2 Stage AC Motor Horizontal Gearbox Foot Mounted
1 Stage 2 Stage AC Motor Horizontal Gearbox Foot Mounted
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Material: Cast Iron Gearing Arrangement: Cycloidal
Housing Material: Cast Iron Input Form:: IEC Flange
Output Form:: Keyed Solid Shaft Output Input Form: Mounting Motor
High Light:

AC Motor Horizontal Gearbox

,

1 Stage Horizontal Gearbox

,

2 Stage worm gearbox reducer

Foot-Mounted AC Motor Worm Gearbox Reducer Horizontal



1. Different variants, both input and output shafts can be mounted horizontally or vertically
2. Compact structure
3. Direct drive or indirect drive available
4. Output could be solid shaft or hollow hole



Horizontal Gear Reducer​ Parameters:

Housing material HT250 high-strength cast iron
Housing hardness HBS190-240
Gear material 20CrMnTi alloy steel
Surface hardness of gears HRC58°~62 °
Gear core hardness HRC33~40
Input / Output shaft material 42CrMo alloy steel
Input / Output shaft hardness HRC25~30
Machining precision of gears accurate grinding, 6~5 Grade
Lubricating oil GB L-CKC220-460, Shell Omala220-460
Heat treatment tempering, cementiting, quenching, etc.
Efficiency 94%~96% (depends on the transmission stage)
Noise (MAX) 60~68dB
Temp. rise (MAX) 40°C
Temp. rise (Oil)(MAX) 50°C
Vibration ≤20µm
Backlash ≤20Arcmin



Horizontal Gear Reducer Advantages:
1. Large reduction ratio, 1-stage ratio 9~87, 2-stage ratio 121~1849, larger reduction ratio is available by 3-stage or multistage combinations
2. High efficiency, the average efficiency is over 90%
3. Compact structure, light weight
4. Stable and reliable operation, low noise
5. Long service life



Application: widely used in petroleum, environmental protection, chemical, cement, transport,textile, pharmaceutical, food, printing paint, lifting, mining, metallurgy, construction,papermaking, power generation ,pesticide ,environmental protection , coating,transportation ,new domestic logistics equipment and other industries.



1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High-quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



FAQ:

Q1. How can I choose the model that best meets my requirements?
A1. You can refer to our catalog to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameters, etc.

Q2. What information shall we give before placing a purchase order?
A2. a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor detail, etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

Q3. What industries are your gearboxes being used in?
A3. Our gearboxes are widely used in automatic machinery and equipment in textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tobacco, environmental protection, logistics and other fields.
