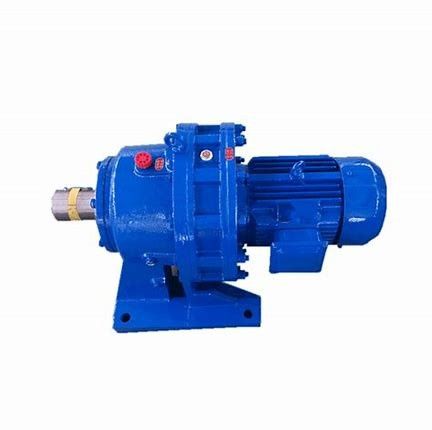

Cycloid reducer Horizontal Type Vertical Type

Cycloid reducer Horizontal Type Vertical Type

  • Cycloid reducer  Horizontal Type Vertical Type
Cycloid reducer  Horizontal Type Vertical Type
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Housing Material:: Aluminum Alloy Gearing Arrangement: Cycloidal
Product Name:: Automatic Gearbox Transmission Mounting Position: Foot Mounted, Flange Mounted
Output Form:: Keyed Solid Shaft Output Input Form: Mounting Motor
High Light:

Cycloidal Helical Worm Gear Motor


Foot Mounted helical worm gear motor


Flange Mounted worm drive gearbox with motor

Worm Drive Horizontal Concrete Mixer Pump Reducer Gearbox

In general, bar and wire rolling, rolling mill is horizontal, vertical, alternate arrangement, which makes steel billet in can rolling up and down, left and right four direction, to improve the overall mechanical properties of steel.The horizontal mill is called H type mill (H is the first letter of "horizontal" English word "horizontal"), and the reducer in it is called H type reducer;The vertical mill is called a v-shaped mill (V is the first letter of the vertical English word vertical), and the reducer in it is called a v-type reducer.In addition, there is also H/V vertical dressing mill, which can be determined according to the requirements of horizontal rolling or vertical rolling.


Horizontal Gear Reducer​ Parameters:

Housing material HT250 high-strength cast iron
Housing hardness HBS190-240
Gear material 20CrMnTi alloy steel
Surface hardness of gears HRC58°~62 °
Gear core hardness HRC33~40
Input / Output shaft material 42CrMo alloy steel
Input / Output shaft hardness HRC25~30
Machining precision of gears accurate grinding, 6~5 Grade
Lubricating oil GB L-CKC220-460, Shell Omala220-460
Heat treatment tempering, cementiting, quenching, etc.
Efficiency 94%~96% (depends on the transmission stage)
Noise (MAX) 60~68dB
Temp. rise (MAX) 40°C
Temp. rise (Oil)(MAX) 50°C
Vibration ≤20µm
Backlash ≤20Arcmin


Horizontal Gear Reducer Advantages:
1. Large reduction ratio, 1-stage ratio 9~87, 2-stage ratio 121~1849, larger reduction ratio is available by 3-stage or multistage combinations
2. High efficiency, the average efficiency is over 90%
3. Compact structure, light weight
4. Stable and reliable operation, low noise
5. Long service life


Application: widely used in petroleum, environmental protection, chemical, cement, transport,textile, pharmaceutical, food, printing paint, lifting, mining, metallurgy, construction,papermaking, power generation ,pesticide ,environmental protection , coating,transportation ,new domestic logistics equipment and other industries.


1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High-quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



Q1. How can I choose the model that best meets my requirements?
A1. You can refer to our catalog to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameters, etc.

Q2. What information shall we give before placing a purchase order?
A2. a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor detail, etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

Q3. What industries are your gearboxes being used in?
A3. Our gearboxes are widely used in automatic machinery and equipment in textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tobacco, environmental protection, logistics and other fields.
