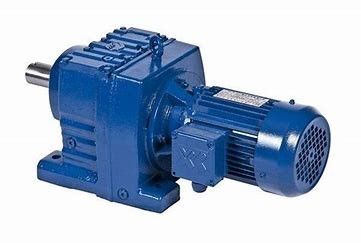

R Series Hydraulic Helical Reduction Gearbox DC Series HT250

R Series Hydraulic Helical Reduction Gearbox DC Series HT250

  • R Series Hydraulic Helical Reduction Gearbox DC Series HT250
R Series Hydraulic Helical Reduction Gearbox DC Series HT250
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert Certification: IECEE
Output Torque: 85~18000N.m Output Speed: 0.1~436.36RPM
Heat Treatment: Carburizing Input Form: IEC Flange / Input Shaft
High Light:

436.36RPM Hydraulic Helical Reduction Gearbox

,

436.36RPM helical reduction gearbox

,

436.36RPM helical gearbox with motor

R Series Hydraulic Helical Gear Motor Dc Series Speed Reducer



1. Mad of high-quality aluminum alloy, light weight and non-rusting
2. Large output torque
3. Smooth in running and low in noise,can work long time in dreadful conditions.
4. High in radiating efficiency.
5. Good-looking in appearance,durable in service life and small in volume.
6. Suitable for omnibearing installation.



The features of R Series Foot Mounted Speed Reducer

1. Compact structure, modular design
2. Single-stage, two-stage and three-stage sizes
3. High reduction ratio and torque density
4. Long service life
5. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, UDL Series)



Models
Output Shaft Dia.
Input Shaft Dia.
Power(kW)
Ratio
Max. Torque(Nm)
R/RF18
20mm
-
0.18~0.75
3.83~74.84
85
R/RF28
25mm
16mm
0.18~3
3.37~135.09
130
R/RF38
25mm
16mm
0.18~3
3.41~134.82
200
R/RF48
30mm
19mm
0.18~5.5
3.83~176.88
300
R/RF58
35mm
19mm
0.18~7.5
4.39~186.89
450
R/RF68
35mm
19mm
0.18~7.5
4.29~199.81
600
R/RF78
40mm
24mm
0.18~11
5.21~195.24
820
R/RF88
50mm
28mm
0.55~22
5.36~246.54
1550
R/RF98
60mm
38mm
0.55~30
4.49~289.6
3000
R/RF108
70mm
42mm
2.2~45
5.06~245.5
4300
R/RF138
90mm
55mm
5.5~55
5.51~223.34
8000
R/RF148
110mm
55mm
11~90
5.00~163.46
13000
R/RF168
120mm
70mm
11~160
8.77~196.41
18000



1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.





R Series Helical Gear Reducer

  • Power 0.12~160KW
  • Output Speed(r/min) 0.05~809
  • Output Torque(N.m) Top to 36000
  • Ratio 1.30~21545
  • Weight 5~1250KGS
  • Standard voltage and frequency 380V&50HZ
  • Packaging detail Wooden case; customized packing is acceptable

1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



FAQ

Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
