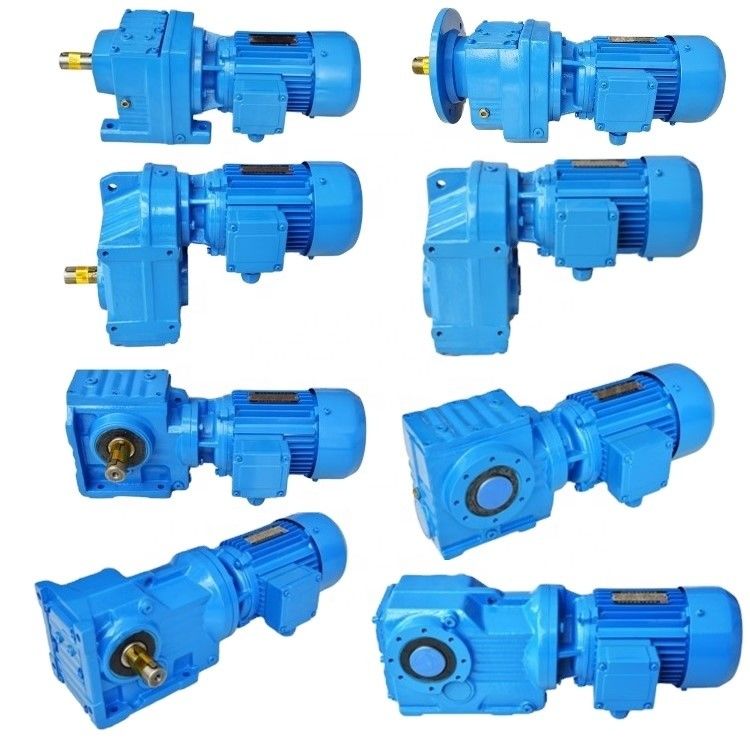

Parallel Shaft Bevel Helical Gear Speed Reducer Reduction Gearbox

Parallel Shaft Bevel Helical Gear Speed Reducer Reduction Gearbox

  • Parallel Shaft Bevel Helical Gear Speed Reducer  Reduction Gearbox
Parallel Shaft Bevel Helical Gear Speed Reducer  Reduction Gearbox
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Material Of Gear:: 20CrMnTi Product Name: Gear Reducer
Size: Custom Packing: Weeden Box
Efficiency: Single-Stage 96% Material Of Housing: Cast Iron
High Light:

Parallel Shaft Helical Gear Speed Reducer

,

bevel helical reduction gearbox

,

Parallel Shaft helical reduction gearbox

F Series Parallel Shaft Gear Box F Series Helical Gear Reducer Speed Reducer​

The Product Description:

Hecheng extra-slim parallel shaft helical geared motors are the perfect solution when space is limited. The many different sizes and designs ensure that the gearbox can be used a wide range of applications even under the most unfavorable conditions. Hecheng Parallel shaft helical gear reducer are typically used in conveyor and materials processing applications. Foot-mounted or Flange-mounted or shaft-mounted as installation options.



Housing material High-strength cast iron HT250
Gear material 20CrMnTi
Input Power 0.12-200KW
Output Torque 3.5-21700N.m
Output Speed 5-371 RPM
Gear Accuracy 7 to 6 level
Noise(Max) 60-70dB
Vibration ≤20um
Effeciency Single stage 98%, Double-stage:96%, Three-stage:94%
Mounting Position Foot / Flange Mounting





The features of R Series Foot Mounted Speed Reducer

1. Compact structure, modular design
2. Single-stage, two-stage and three-stage sizes
3. High reduction ratio and torque density
4. Long service life
5. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, UDL Series)



Models
Output Shaft Dia.
Input Shaft Dia.
Power(kW)
Ratio
Max. Torque(Nm)
R/RF18
20mm
-
0.18~0.75
3.83~74.84
85
R/RF28
25mm
16mm
0.18~3
3.37~135.09
130
R/RF38
25mm
16mm
0.18~3
3.41~134.82
200
R/RF48
30mm
19mm
0.18~5.5
3.83~176.88
300
R/RF58
35mm
19mm
0.18~7.5
4.39~186.89
450
R/RF68
35mm
19mm
0.18~7.5
4.29~199.81
600
R/RF78
40mm
24mm
0.18~11
5.21~195.24
820
R/RF88
50mm
28mm
0.55~22
5.36~246.54
1550
R/RF98
60mm
38mm
0.55~30
4.49~289.6
3000
R/RF108
70mm
42mm
2.2~45
5.06~245.5
4300
R/RF138
90mm
55mm
5.5~55
5.51~223.34
8000
R/RF148
110mm
55mm
11~90
5.00~163.46
13000
R/RF168
120mm
70mm
11~160
8.77~196.41
18000



1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.





R Series Helical Gear Reducer

  • Power 0.12~160KW
  • Output Speed(r/min) 0.05~809
  • Output Torque(N.m) Top to 36000
  • Ratio 1.30~21545
  • Weight 5~1250KGS
  • Standard voltage and frequency 380V&50HZ
  • Packaging detail Wooden case; customized packing is acceptable

1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



FAQ

Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
