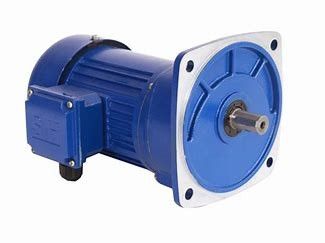

18000NM Cylindrical Inline Helical Gear Reducer Modular Design

18000NM Cylindrical Inline Helical Gear Reducer Modular Design

  • 18000NM Cylindrical Inline Helical Gear Reducer Modular Design
18000NM Cylindrical Inline Helical Gear Reducer Modular Design
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert Gears Style: Helica Gear
Output Torque: 85~18000N.m Output Speed:: 35RPM
Input Speed: 1440rpm Usage: Speed Change
High Light:

18000NM inline helical gear reducer

,

Cylindrical inline helical gear reducer

,

Cylindrical helical bevel speed reducer

R Series Helical Gear Speed Reducer Hard Tooth Gearbox With Motor



The Product Description:

Cylindrical gear reducer gear carburizing, quenching, grinding, high bearing capacity, low noise; mainly used for belt conveyor and various kinds of transport machinery, can also be used to drive other general machinery. It has the advantages of high bearing capability, long service life, small volume, high efficiency, light weight, for the input shaft and the output shaft is vertically arranged in the driving device.

The field of cylindrical gear reducer is widely used in metallurgical equipment, mining equipment, automation equipment, food machinery, packaging equipment, tobacco equipment etc..


The features of R Series Foot Mounted Speed Reducer

1. Compact structure, modular design
2. Single-stage, two-stage and three-stage sizes
3. High reduction ratio and torque density
4. Long service life
5. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, UDL Series)



Models
Output Shaft Dia.
Input Shaft Dia.
Power(kW)
Ratio
Max. Torque(Nm)
R/RF18
20mm
-
0.18~0.75
3.83~74.84
85
R/RF28
25mm
16mm
0.18~3
3.37~135.09
130
R/RF38
25mm
16mm
0.18~3
3.41~134.82
200
R/RF48
30mm
19mm
0.18~5.5
3.83~176.88
300
R/RF58
35mm
19mm
0.18~7.5
4.39~186.89
450
R/RF68
35mm
19mm
0.18~7.5
4.29~199.81
600
R/RF78
40mm
24mm
0.18~11
5.21~195.24
820
R/RF88
50mm
28mm
0.55~22
5.36~246.54
1550
R/RF98
60mm
38mm
0.55~30
4.49~289.6
3000
R/RF108
70mm
42mm
2.2~45
5.06~245.5
4300
R/RF138
90mm
55mm
5.5~55
5.51~223.34
8000
R/RF148
110mm
55mm
11~90
5.00~163.46
13000
R/RF168
120mm
70mm
11~160
8.77~196.41
18000



1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.





R Series Helical Gear Reducer

  • Power 0.12~160KW
  • Output Speed(r/min) 0.05~809
  • Output Torque(N.m) Top to 36000
  • Ratio 1.30~21545
  • Weight 5~1250KGS
  • Standard voltage and frequency 380V&50HZ
  • Packaging detail Wooden case; customized packing is acceptable

1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



FAQ

Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
