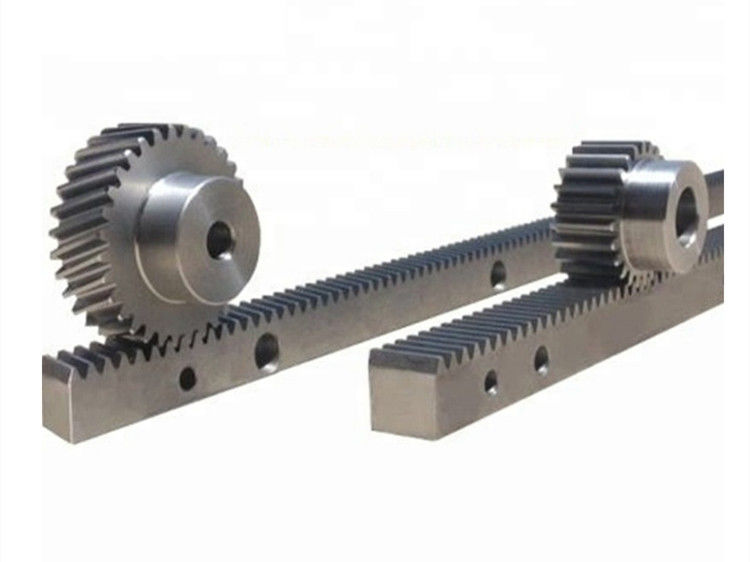

14rpm To 280rpm Worm Gear Rack And Pinion 800 To 100000N.M

14rpm To 280rpm Worm Gear Rack And Pinion 800 To 100000N.M

  • 14rpm To 280rpm Worm Gear Rack And Pinion 800 To 100000N.M
14rpm To 280rpm Worm Gear Rack And Pinion 800 To 100000N.M
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Customized Support: OEM Output Torque: 800~100000N.m
Output Speed: 14-280rpm Type: Hydraulic Motor Reducer
Power: Hydraulic Input Speed: 1400rpm
High Light:

100000N.m 280rpm worm gear rack and pinion

,

100000N.m 800n.m worm gear rack and pinion

,

100000N.m 14 rpm helical tooth rack

Helical Gear Units Small Transmission Gearbox Bevel Helical Gearbox Screw Jack


Finish Result
As Machined Sharp edge and burrs will be removed
Bead Blast The part surface is left with a smooth, matte appearance
Anodized

Type II creates a corrosion-resistant finish. Parts can be anodized in different colors—clear,

black, red, and gold are most common—and is usually associated with aluminum.

Type III is thicker and creates a wear-resistant layer in addition to the corrosion resistance

seen with Type II.

Powder Coat

This is a process where powdered paint is sprayed onto a part which is then baked in an oven.

This creates a strong, wear- and corrosion-resistant layer that is more durable than standard

painting methods. A wide variety of colors are available to create the desired aesthetic.

Customized Cotact us via email,skype,whatsapp. We will look into a finishing process for you.



Gear Reducer​ Jack Parameters:

Type Model Screw thread size

Max

lifting strength

kN

Max

pull force

kN

Weight without stroke

kg

Screw weight

per 100mm







SWL



Screw jack



SWL2.5 Tr30*6 25 25 7.3 0.45
SWL5 Tr40*7 50 50 16.2 0.82
SWL10/15 Tr58*12 100/150 99 25 1.67
SWL20 Tr65*12 200 166 36 2.15
SWL25 Tr90*16 250 250 70.5 4.15
SWL35 Tr100*18 350 350 87 5.20
SWL50 Tr120*20 500 500 420 7.45
SWL100 Tr160*23 1000 1000 1010 13.6
SWL120 Tr180*25 1200 1200 1350 17.3



1. High quality, It adopts hard tooth gear with high accuracy
2. Large output torque, stable transmission with lower noise
3. High heat-radiating efficiency, elegant shape, durable service life

4. Suitable for Omni-bearing installation
5. Low noise and smooth running
6. Worm drive uses hollow flank worm
7. High loading capacity, low in temperature rise, and the long useful life
8. Few differences between transmission ratio rate, I = 6~13800
9. Compact structure, small size, convenient maintenance
10. Are based the unique modulation combination system, so it's convenient for them to fit all types of motors or to connect with other power input. The same type of reducer can fit motors with different power so that it's possible for different types of machines to combine or connect.



Application Industries:
Our screw jacks are widely used in the industries such as metallurgy,mining,hoisting and transportation, electrical power,energy source,constrction and building material,light industry and traffice industry



FAQ:

Q1. How can I choose the model that best meets my requirements?
A1. You can refer to our catalog to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameters, etc.

Q2. What information shall we give before placing a purchase order?
A2. a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor detail, etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

Q3. What industries are your gearboxes being used in?
A3. Our gearboxes are widely used in automatic machinery and equipment in textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tobacco, environmental protection, logistics and other fields.
