Place of Origin: | China |
Brand Name: | Shuowei |
Certification: | CE SGS ISO9001 |
Model Number: | R series |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Case; Customized Packing Is Acceptable |
Delivery Time: | 5-8 Work Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 Piece Per Month |
Input Speed: | 45-240rpm | Ratio: | 5.36-197.37 |
---|---|---|---|
Manufacturing Method Of Gear: | Cast Gear | Toothed Portion Shape: | Involute Spur Gear |
Material: | Aluminum & Iron Coating | ||
High Light: | K Series hollow shaft gear reducer,2.2KW hollow shaft gear reducer,7.5KW hollow shaft reducer |

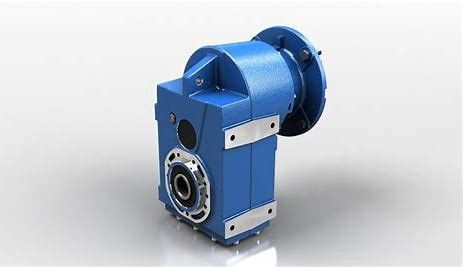

Gear Box Speed Reducer K Series Hollow Shaft Bevel Gearbox With Flange Output
1. Helical gear spiral bevel gear structure
|
2. High torque, high-quality alloy steel gear
|
3. Tooth surface carburizing and quenching greatly improve the service life
|
4. Bearing capacity, high transmission efficiency
|
5. Many ways to link and install
|
Shaft Mounted Gear Speed Reducer Parameters:
size number: | 40,50,60,70,80,100,120,135,147,155,175,200,250 |
ratio: | 1/10,1/15,1/30,1/20,1/40,1/25,1/50,1/60 |
color: | green, blue, silver, black and other customized color |
material: |
housing is made of HT200 the worm wheel is made of aluminum bronze |
packing: | Inner pack: use pp bag an Inner pack: use a plastic bag and foam box, outer pack: carton or wooden case 1 set/bag/carton or based on customer's request |
bearing: | NSK & Homemade bearing |
seal: |
SKF NAK |
input power: | 0.12KW,0.18kw,0.37kw,0.55kw,0.75kw,1.5kw,2.2kw,3.0kw,4.0kw,5.5kw,7.5kw,11.0kw,15.0kw |
shaft direction: | A,B,C,D,E |
input form: | IEC flange for mounting motor,solid |
output form: | solid shaft,hollow shaft |
weight: | 4-360KGS |
application: |
In industrial machine:foodstuff, ceramics,chemical, packing, printing,dyeing, woodworking,glass, and plastics |
warranty: | 1 year |
Cycloid Gearbox Reducer applied for
- Belt conveyor drives
- Bucket elevator drives
- Agitator drives
- Hoisting gear drives
- Travelling gear drives
- Paper machine drives
- Dryer drives
- Water screw drives
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High-quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
FAQ:
Q1. How can I choose the model that best meets my requirements?
A1. You can refer to our catalog to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameters, etc.
Q2. What information shall we give before placing a purchase order?
A2. a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor detail, etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
Q3. What industries are your gearboxes being used in?
A3. Our gearboxes are widely used in automatic machinery and equipment in textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tobacco, environmental protection, logistics and other fields.
