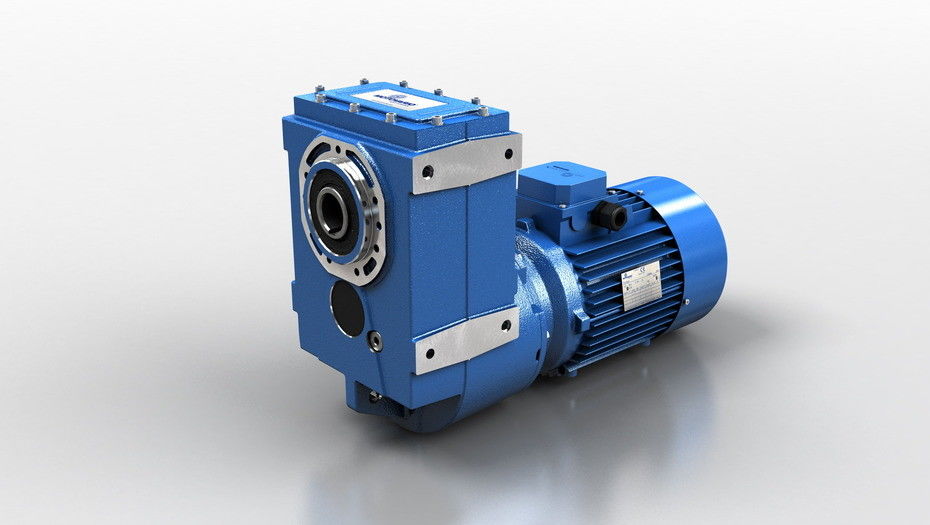

F Series Shaft Mounted Speed Reducer parallel 3KW 4KW

F Series Shaft Mounted Speed Reducer parallel 3KW 4KW

  • F Series Shaft Mounted Speed Reducer parallel 3KW 4KW
F Series Shaft Mounted Speed Reducer parallel 3KW 4KW
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Customized Support: OEM, ODM Applicable Industries: Metallurgy,Sewage Treatment
Input Speed: 45-240rpm Surface Treatment:: Heat Treatment
Toothed Portion Shape: Involute Spur Gear Material: Aluminum & Iron Coating
High Light:

240rpm F Series Shaft Mounted Speed Reducer

,

240rpm 3KW Shaft Mounted Speed Reducer

,

4KW parallel shaft gear motor

F Series Parallel Shaft Helical Gear Reducer



Shaft Mounted Gear Speed Reducer ​Main Features

F series reducer is a kind of gear is used to reduce the motor speed and improve the output torque of the principle of speed reducer. It uses the gear and gear meshing, with advanced design and novel structure of retarding mechanism.
It has been widely used in harbor and shipping,electric power,coal mining,cement and construction,paper and light industry.



Shaft Mounted Gear Speed Reducer ​ Parameters:

size number: 40,50,60,70,80,100,120,135,147,155,175,200,250
ratio: 1/10,1/15,1/30,1/20,1/40,1/25,1/50,1/60
color: green, blue, silver, black and other customized color
material:

housing is made of HT200

the worm wheel is made of aluminum bronze

packing: Inner pack: use pp bag an Inner pack: use a plastic bag and foam box, outer pack: carton or wooden case 1 set/bag/carton or based on customer's request
bearing: NSK & Homemade bearing
seal:

SKF

NAK

input power: 0.12KW,0.18kw,0.37kw,0.55kw,0.75kw,1.5kw,2.2kw,3.0kw,4.0kw,5.5kw,7.5kw,11.0kw,15.0kw
shaft direction: A,B,C,D,E
input form: IEC flange for mounting motor,solid
output form: solid shaft,hollow shaft
weight: 4-360KGS
application:

In industrial machine:foodstuff, ceramics,chemical,

packing, printing,dyeing, woodworking,glass, and plastics

warranty: 1 year





Cycloid Gearbox Reducer applied for
- Belt conveyor drives
- Bucket elevator drives
- Agitator drives
- Hoisting gear drives
- Travelling gear drives
- Paper machine drives
- Dryer drives
- Water screw drives



1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High-quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



FAQ:

Q1. How can I choose the model that best meets my requirements?
A1. You can refer to our catalog to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameters, etc.

Q2. What information shall we give before placing a purchase order?
A2. a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor detail, etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

Q3. What industries are your gearboxes being used in?
A3. Our gearboxes are widely used in automatic machinery and equipment in textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tobacco, environmental protection, logistics and other fields.
