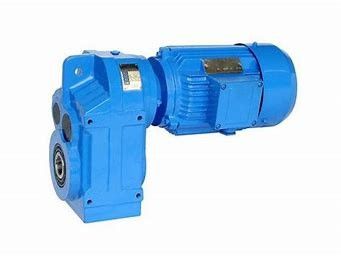

IP55 F Class Parallel Shaft Helical Gear Reducer CE

IP55 F Class Parallel Shaft Helical Gear Reducer CE

  • IP55 F Class Parallel Shaft Helical Gear Reducer CE
IP55 F Class Parallel Shaft Helical Gear Reducer CE
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Bearing: NSK,HRB,ZWZ,C&U,etc Output Speed: 60 Rpm
Output Torque: 300 Nm Certification: IECEE, CE, ISO
Oil Seal: NAK Brand VITON Or NBR Mounting Position: Foot Mounted,flange Mounted
High Light:

IP55 F Class Parallel Shaft Helical Gear Reducer

,

IP55 CE Parallel Shaft Helical Gear Reducer

,

IP55 parallel shaft reducer

F Helical Parallel Shaft Heavy Duty Gear Units For Smelt Ndustry



• High efficiency and save power.
• High modular design, flexible mounting mode.
• Integrated casting housing,compact dimension, stable transmitting and low noise level.
• Perfect oil leakage preventing makes the good sealings and can be used in wide range of industry.
• Advanced gear grinding and modified profile, high loading support and more safe operation.





We are offerings series of helical-worm geared motor

  1. output speed(r/min): 0.04-349
  2. output torque (n.m): top to 6500 motor
  3. power (kW): 0.12-22 -
  4. structures: foot-mounted, flange-mounted, with or without motor, shaft-input type for sprocket or pulley;
  5. transmission ratio: fine division, wide scope, and may combine different series to get larger ratio;
  6. the box body is made of high-strength cast iron. Gear and gear shaft adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity of unit volume is high.
  7. high efficiency up to 98%per stage, low noise
Helical Bevel Reducer Details
Ratio
5 ~ 186
Color
RAL5010 Gentian Blue/ RAL7031 Blue Grey/ Customer Request
Material
Housing: HT250 high-strength cast iron
Gear: 20CrMnTiH alloy steel
Input/Output Shaft: 42CrMo alloy steel
Bearing
LYC, HRB, NSK or other brand
Seal
NAK or other brand
Machining Precision of gears
Accurate grinding, 6-5 Grade
Lubricating oil
GB L-CKC220-460, Shell Omala220-460
Warranty
1 Year
Packing
Fumigation wooden case

Housing material High-strength cast iron HT250
Gear material 20CrMnTi
Input Power 0.12-200KW
Output Torque 3.5-21700N.m
Output Speed 5-371 RPM
Gear Accuracy 7 to 6 level
Gear Surface hardness HRC58°-62°
Input/Output shaft hardness HB220-250
Noise(Max) 60-70dB
Tem.rise(Max) 40°C
Tem.rise(Oil Max) 50°C
Vibration ≤20um
Backlash ≤20Arcmin
Effeciency Single stage 98%, Double-stage:96%, Three-stage:94%
Mounting Position Foot / Flange Mounting
Motor IP55,F Class


The features of R Series Foot Mounted Speed Reducer

1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)R K S F helical gear motor



R Series Helical Gear Reducer



1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



Q1. How can I choose the model that best meets my requirements?
A1. You can refer to our catalog to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter etc.

Q2. What information shall we give before placing a purchase order?
A2. a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor detail etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

Q3. What industries are your gearboxes being used?
A3. Our gearboxes are widely used in automatic machinery and equipment in textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tobacco, environmental protection, logistics and other fields.
