Place of Origin: | China |
Brand Name: | Shuowei |
Certification: | CE SGS ISO9001 |
Model Number: | R series |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Case; Customized Packing Is Acceptable |
Delivery Time: | 5-8 Work Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 Piece Per Month |
Customized Support: | OEM | Output Speed: | 8-300rpm |
---|---|---|---|
Output Torque: | 300 Nm | Certification: | IECEE, CE, ISO |
Oil Seal: | NAK Brand VITON Or NBR | Product Name:: | R Series Helical Gear Parallel Shaft Speed Reducer |
High Light: | 300 Nm R Series Parallel Shaft Helical Gear Reducer,8rpm Parallel Shaft Helical Gear Reducer,300 Nm 300rpm parallel gearbox |

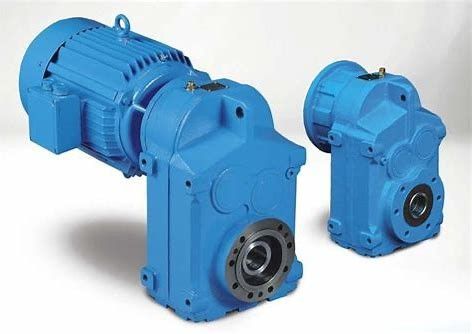

R Series Helical Gear Parallel Shaft Speed Reducer
Excellent Features of R Series Helical Gear Parallel Shaft Speed Reducer
- F Series Decelerator is characterised by compact structure, light weight, large torque and excellent performance;
- It is made of rib-reinforced rigid case and premium alloy-steel gear which is hardened by carbon penetration and grinned precisely;
- Stable in running, low noise, large in load, low in consumption, efficient in transmission, low in temperature rise, and long in service life;
- The mounting styles are footing, flange, torque arm and so on. The output style are shaft, hollow shaft, the alpine and shrink disc are for choice.
We are offerings series of helical-worm geared motor
Ratio | 5 ~ 186 |
Color | RAL5010 Gentian Blue/ RAL7031 Blue Grey/ Customer Request |
Material | Housing: HT250 high-strength cast iron |
Gear: 20CrMnTiH alloy steel | |
Input/Output Shaft: 42CrMo alloy steel | |
Bearing | LYC, HRB, NSK or other brand |
Seal | NAK or other brand |
Machining Precision of gears | Accurate grinding, 6-5 Grade |
Lubricating oil | GB L-CKC220-460, Shell Omala220-460 |
Warranty | 1 Year |
Packing | Fumigation wooden case |
Housing material | High-strength cast iron HT250 |
Gear material | 20CrMnTi |
Input Power | 0.12-200KW |
Output Torque | 3.5-21700N.m |
Output Speed | 5-371 RPM |
Gear Accuracy | 7 to 6 level |
Gear Surface hardness | HRC58°-62° |
Input/Output shaft hardness | HB220-250 |
Noise(Max) | 60-70dB |
Tem.rise(Max) | 40°C |
Tem.rise(Oil Max) | 50°C |
Vibration | ≤20um |
Backlash | ≤20Arcmin |
Effeciency | Single stage 98%, Double-stage:96%, Three-stage:94% |
Mounting Position | Foot / Flange Mounting |
Motor | IP55,F Class |
The features of R Series Foot Mounted Speed Reducer
1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)R K S F helical gear motor
R Series Helical Gear Reducer
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
Q1. How can I choose the model that best meets my requirements?
A1. You can refer to our catalog to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter etc.
Q2. What information shall we give before placing a purchase order?
A2. a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor detail etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
Q3. What industries are your gearboxes being used?
A3. Our gearboxes are widely used in automatic machinery and equipment in textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tobacco, environmental protection, logistics and other fields.
