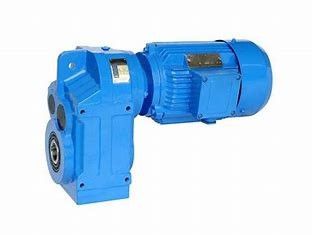

H Series Parallel Shaft Helical Gear Reducer 60rpm 300N.M

H Series Parallel Shaft Helical Gear Reducer 60rpm 300N.M

  • H Series Parallel Shaft Helical Gear Reducer 60rpm 300N.M
H Series Parallel Shaft Helical Gear Reducer 60rpm 300N.M
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Customized Support: OEM Output Speed: 60 Rpm
Output Torque: 300 Nm Certification: IECEE, CE, ISO
Feature: Low Noise,easy Installation, Long Service Life And Easy Maintenance Keyword: Speed Reducer
High Light:

300N.M H Series Parallel Shaft Helical Gear Reducer

,

60rpm Parallel Shaft Helical Gear Reducer

,

300N.M parallel shaft speed reducer

Parallel Shaft H Series Helical Gear Reducer Gearbox For Metal Recycling Production Line



 1. High modularization design: many equipped with various motor or other power input conveniently.Same machine type may equip with various power motor. It is easy to realize the combination and
the junction between every machine type.
2. Transmission ratio: fine division, wide scope. The combined machine type may form very large transmission ratio, i.e. output very low rotary speed.
3. Form of installation: the position to be installed is not limited.
4. High strength, compact: the box body is made of high strength cast iron. Gear and gear shaft adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity of unitvolume is high.
5. Long life: Under the condition of correct type chosen (including choosing suitable operation parameters)normal operation and maintenance, the life of main parts of speed reducer (except wearing parts) should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal and bearing.
6. Low noise: because main parts of speed reducer are processed, assembled and tested critically,therefore the noise of speed reducer is low;
7. Parallel axis -bevel wheel speed-down motor



We are offerings series of helical-worm geared motor

  1. output speed(r/min): 0.04-349
  2. output torque (n.m): top to 6500 motor
  3. power (kW): 0.12-22 -
  4. structures: foot-mounted, flange-mounted, with or without motor, shaft-input type for sprocket or pulley;
  5. transmission ratio: fine division, wide scope, and may combine different series to get larger ratio;
  6. the box body is made of high-strength cast iron. Gear and gear shaft adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity of unit volume is high.
  7. high efficiency up to 98%per stage, low noise
Helical Bevel Reducer Details
Ratio
5 ~ 186
Color
RAL5010 Gentian Blue/ RAL7031 Blue Grey/ Customer Request
Material
Housing: HT250 high-strength cast iron
Gear: 20CrMnTiH alloy steel
Input/Output Shaft: 42CrMo alloy steel
Bearing
LYC, HRB, NSK or other brand
Seal
NAK or other brand
Machining Precision of gears
Accurate grinding, 6-5 Grade
Lubricating oil
GB L-CKC220-460, Shell Omala220-460
Warranty
1 Year
Packing
Fumigation wooden case

Housing materialHigh-strength cast iron HT250
Gear material20CrMnTi
Input Power0.12-200KW
Output Torque3.5-21700N.m
Output Speed5-371 RPM
Gear Accuracy7 to 6 level
Gear Surface hardnessHRC58°-62°
Input/Output shaft hardnessHB220-250
Noise(Max)60-70dB
Tem.rise(Max)40°C
Tem.rise(Oil Max)50°C
Vibration≤20um
Backlash≤20Arcmin
EffeciencySingle stage 98%, Double-stage:96%, Three-stage:94%
Mounting PositionFoot / Flange Mounting
MotorIP55,F Class


The features of R Series Foot Mounted Speed Reducer

1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)R K S F helical gear motor



R Series Helical Gear Reducer



1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



Q1. How can I choose the model that best meets my requirements?
A1. You can refer to our catalog to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameter etc.
Q2. What information shall we give before placing a purchase order?
A2. a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor detail etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
Q3. What industries are your gearboxes being used?
A3. Our gearboxes are widely used in automatic machinery and equipment in textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tobacco, environmental protection, logistics and other fields.
