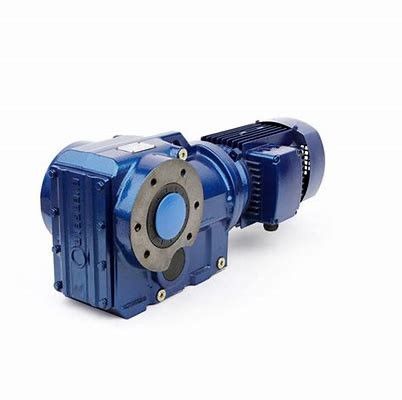

HT250 Helical Bevel Reducer

HT250 Helical Bevel Reducer

  • HT250 Helical Bevel Reducer
HT250 Helical Bevel Reducer
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Customized Support: OEM Gearing Arrangement: Helical
Input Speed: Less Than 3600RPM Product Name: Speed Reducer
Housing Material: HT250 High-strength Cast Iron Oil Seal: NAK Brand VITON Or NBR
High Light:

HT250 Helical Bevel Reducer

,

3600RPM helical bevel reducer

,

HT250 R series bevel gear reducer

Helical Bevel Reducer Gear High Power Reductor Gearbox


Operation specifications and precautions
1. High modularization design: many equip with various motor or other power input conveniently.Same machine type may equip with various power motors. It is easy to realize the combination and
junction between every machine type.
2. Transmission ratio: fine division, wide scope. The combined machine type may form very large transmission ratio, i.e. output very low rotary speed.
3. Form of installation: the position to be installed is not limited.
4. High strength, compact: the box body is made of high strength cast iron. Gear and gear shaft adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity of unitvolume is high.
5. Long life: Under the condition of correct type chosen (including choosing suitable operation parameters)normal operation and maintenance, the life of main parts of speed reducer (except wearing parts) should not be less than 20000 hours. The wearing parts include lubricating oil, oil seal and bearing.
6. Low noise: because main parts of speed reducer are processed, assembled and tested critically,therefore the noise of speed reducer is low;
7. Parallel axis -bevel wheel speed-down motor





We are offerings series helical-worm geared motor

  1. output speed(r/min): 0.04-349
  2. output torque (n.m): top to 6500 motor
  3. power (kW): 0.12-22 -
  4. structures: foot-mounted, flange-mounted, with or without motor, shaft-input type for sprocket or pulley;
  5. transmission ratio: fine division, wide scope, and may combine different series to get larger ratio;
  6. the box body is made of high-strength cast iron. Gear and gear shaft adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity of unit volume is high.
  7. high efficiency up to 98%per stage, low noise
Gear type Helical Gear
Gear & Gear Shaft Material 20 CrMnTi
Gear hardness HRC58~62
Solid & Hollow shaft material 42CrMo
Housing material HT250 High-strength Cast Iron
Gear precision DIN6
Bearing C&U ,HRB ,NSK, LYC ,ZWZ
Oil Seal NAK Brand VITON or NBR
Warranty 1 Year



The features of R Series Foot Mounted Speed Reducer

1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)R K S F helical gear motor



R Series Helical Gear Reducer



1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



FAQ

Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
