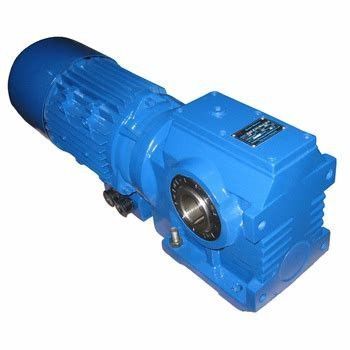

1000-3000rpm Helical Worm Gear Reducer

1000-3000rpm Helical Worm Gear Reducer

  • 1000-3000rpm Helical Worm Gear Reducer
1000-3000rpm Helical Worm Gear Reducer
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Cooling Method:: Ventilated Input Speed:: 1000-3000Rpm
Mounting Position: Horizontal Or Flange-mounted Heat Treatment: Carburizing
Gear Material: 20 CrMnTi Output Speed: 2.5-360Rpm
High Light:

3000rpm Helical Worm Gear Reducer

,

1000rpm Helical Worm Gear Reducer

,

R series helical gear box

Helical Worm Geared Motor Speed Reducer



A worm gear is a gear consisting of a shaft with a spiral thread that engages with and drives a toothed wheel. Worm gears are an old style of gear, and a version of one of the six simple machines. Basically, a worm gear is a screw butted up against what looks like a standard spur gear with slightly angled and curved teeth.

It changes the rotational movement by 90 degrees, and the plane of movement also changes due to the position of the worm on the worm wheel (or simply "the wheel"). They are typically comprised of a steel worm and a brass wheel.



The features of R Series Foot Mounted Speed Reducer

1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)R K S F helical gear motor





1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.



R Series Helical Gear Reducer

Project
BKM SERIES
BMRV SERIES
Transmission
Hypoid Gear
Worm wheel,worm shaft
Transmission efficiency
High(about:90%-92%)
Low(about:50%-85%)
Ratio range
2-stages:7.5-60
3-stages:50-300
5-100
Bearing Capacity
1-1.5
1
Temperature-rise
30℃
60℃
Running Temperature
50-60℃
70-80℃
The sealing reliablity
High
Low
Life
Long
Short
Self-locking
Non
Some ratio
Extension shaft
Non
Some



1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



FAQ

Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
