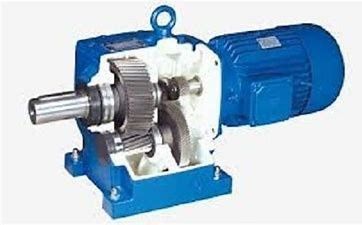

85 To 18000N.M Helical Reduction Gearbox

85 To 18000N.M Helical Reduction Gearbox

  • 85 To 18000N.M Helical Reduction Gearbox
85 To 18000N.M Helical Reduction Gearbox
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert Certification: IECEE
Output Torque: 85~18000N.m Lubricant: Shell Omala220 Or Equivalent
Input Speed: 1440rpm Input Format:: IEC Flange, Direct With Motor, Shaft Input
High Light:

18000N.M Helical Reduction Gearbox

,

85n.m Helical Reduction Gearbox

,

1440rpm helical gear reducer

Equivalent Helical Gear Motor Speed Reducer

1. Easy integration into all your applications
2. Full rated power and output speed are available
3. Low noise running and highly efficient gearing
4. Dust-tight and water-proof,can be used outdoors without additional enclosure
5. Total flexibility in installation options,including base,foot,face and flange solutions

6. Optional voltage and frequency to be compatible with your local power supply

Mounting
solid shaft/hollow shaft/flange/torque arm
Efficiency
>95%
Housing Material
HT250 cast iron
Gear Material
20CrMnTi
Surface Hardness of Gears
HRC59-62
Input / Output Shaft Material
40Cr/HBS241-246
Machinery Precision of Gears
Grade 6/accurate frinding
Heat Treatment
Carburizing and Quenching
Brand of Bearings
NSK/SKF/HVL
Brand of Oil Seal
NAK/NOK
Noise (MAX)
65-70dB/160
Vibration
≤ 20μm





The features of R Series Foot Mounted Speed Reducer

1. Compact structure, modular design
2. Single-stage, two-stage and three-stage sizes
3. High reduction ratio and torque density
4. Long service life
5. Can be combined with other types of gearboxes (Such as R Series, K Series, F Series, S Series, UDL Series)



Models
Output Shaft Dia.
Input Shaft Dia.
Power(kW)
Ratio
Max. Torque(Nm)
R/RF18
20mm
-
0.18~0.75
3.83~74.84
85
R/RF28
25mm
16mm
0.18~3
3.37~135.09
130
R/RF38
25mm
16mm
0.18~3
3.41~134.82
200
R/RF48
30mm
19mm
0.18~5.5
3.83~176.88
300
R/RF58
35mm
19mm
0.18~7.5
4.39~186.89
450
R/RF68
35mm
19mm
0.18~7.5
4.29~199.81
600
R/RF78
40mm
24mm
0.18~11
5.21~195.24
820
R/RF88
50mm
28mm
0.55~22
5.36~246.54
1550
R/RF98
60mm
38mm
0.55~30
4.49~289.6
3000
R/RF108
70mm
42mm
2.2~45
5.06~245.5
4300
R/RF138
90mm
55mm
5.5~55
5.51~223.34
8000
R/RF148
110mm
55mm
11~90
5.00~163.46
13000
R/RF168
120mm
70mm
11~160
8.77~196.41
18000



1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.





R Series Helical Gear Reducer

  • Power 0.12~160KW
  • Output Speed(r/min) 0.05~809
  • Output Torque(N.m) Top to 36000
  • Ratio 1.30~21545
  • Weight 5~1250KGS
  • Standard voltage and frequency 380V&50HZ
  • Packaging detail Wooden case; customized packing is acceptable

1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



FAQ

Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
