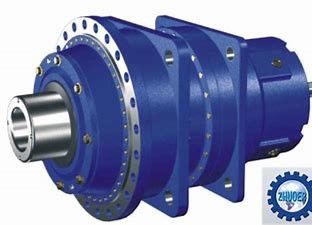

High Torque Rigid Tooth Flank Gear Reducer 1440rpm Flange Mounted

High Torque Rigid Tooth Flank Gear Reducer 1440rpm Flange Mounted

  • High Torque Rigid Tooth Flank Gear Reducer 1440rpm Flange Mounted
High Torque Rigid Tooth Flank Gear Reducer 1440rpm Flange Mounted
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Mounting Types:: Foot Mounted, Flange Mounted Rated Power: 0.25-7.5Kw
Transmission Ratios:: 5 To 163.31 Input Speed: 1440rpm
Output Torque: 2.6-1195N.M Color: Gray, Blue
High Light:

High Torque Rigid Tooth Flank Gear Reducer


1440 rpm Rigid Tooth Flank Gear Reducer


Flange Mounted electric motor gear reduction

High Torque Helical Gear Reduction Gearbox Electric Motor Reducer


1 . Mix color,mix design, for you winner market
2. 100% On-time shipment protection
3. Rich export experience more than 14 years
4. Most Popular Helical motor integrated marketing factory


The features of R Series Foot Mounted Speed Reducer

1. HighlyStandard Modular Designed

2. Quality material ensures the product reliability

3. high strength, Compact Dimension

4. long service Life

5. low noise

6. HighEfficiency

7. Largeradial loading ability

8. Axialload ability of up to 5% of radial load


Housing material high-strength cast iron
Housing hardness HBS190-240
Gear material 20CrMnTi alloy steel
Surface hardness of gears HRC58°~62 °
Gear core hardness HRC33~40
Input / Output shaft material 42CrMo alloy steel
Input / Output shaft hardness HRC25~30
Machining precision of gears accurate grinding, 6~5 Grade
Lubricating oil GB L-CKC220-460, Shell Omala220-460
Heat treatment tempering, cementiting, quenching, etc.
Efficiency 94%~96% (depends on the transmission stage)
Noise (MAX) 60~68dB
Temp. rise (MAX) 40°C
Temp. rise (Oil)(MAX) 50°C
Vibration ≤20µm
Backlash ≤20Arcmin


1. RC series industrial transmission gearmotor own rational design, compact construction, smaller size than X or B series cycloidal gearmotor at the same permitted torque.
2. Little vibration and low noise, with high transmission efficiency.
3. The products have been mainly used in chemical machinery, cement agitator machinery, printing and packaging machinery, mine and power transmission machinery, metallurgy etc.



R Series Helical Gear Reducer

  • Power 0.12~160KW
  • Output Speed(r/min) 0.05~809
  • Output Torque(N.m) Top to 36000
  • Ratio 1.30~21545
  • Weight 5~1250KGS
  • Standard voltage and frequency 380V&50HZ
  • Packaging detail Wooden case; customized packing is acceptable


Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
