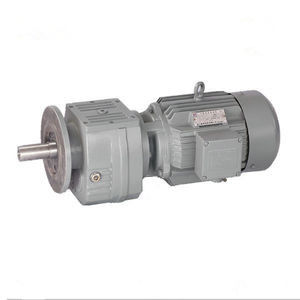

0.5-280rpm Vertical Gear Reducer

0.5-280rpm Vertical Gear Reducer

  • 0.5-280rpm Vertical Gear Reducer
0.5-280rpm Vertical Gear Reducer
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Usage: Industry Mounting Position:: Vertical Mounting
Output Speed: 0.5-280RPM Input Speed: 650-3360RPM
Material Of Housing: HT250 Cast Iron Input Format: IEC Flange, Direct With Motor, Shaft Input
High Light:

280rpm Vertical Gear Reducer

,

0.5rpm Vertical Gear Reducer

,

R series vertical gearbox with motor

Vertical Gear Motor With Vertical Reducer Motor And Control


Insulation voltage
In the circumstance of normal temperature and humidity,
there will be no problem supplying the power of 1500V 50/60Hz between the metal wiring and motor shell in 1 minute while the motor
is working.
Insulation resistance
In the circumastance of normal temperature and humidity,
the resistance can be up to 100MΩ,measured by DC 500V
insulation resistance measurer between the motor wiring
and motor shell while the motor is working


Vertical Gear Reducer Main Features

  • Smooth performance
  • Durable service life
  • Quality make
  • Rigid structure

Vertical Gear Reducer​ Parameters:

item
value
Warranty
12months
Applicable Industries
Manufacturing Plant, Machinery Repair Shops, Farms, Printing Shops, Energy & Mining, Food & Beverage Shops, Other
Customized support
OEM, ODM, OBM
Gearing Arrangement
Gear drive
Output Torque
1.6NM~5235NM
Input Speed
1450RPM
Output Speed
7.25RPM~290RPM
Place of Origin
China
Product name
Electric Motor Speed Reducer


Vertical Gear Reducer Advantages:
1. Large reduction ratio, 1-stage ratio 9~87, 2-stage ratio 121~1849, larger reduction ratio is available by 3-stage or multistage combinations
2. High efficiency, the average efficiency is over 90%
3. Compact structure, light weight
4. Stable and reliable operation, low noise
5. Long service life



Vertical Gear Reducer Reducer applied for
- Belt conveyor drives
- Bucket elevator drives
- Agitator drives
- Hoisting gear drives
- Travelling gear drives
- Paper machine drives
- Dryer drives
- Water screw drives



1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High-quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



FAQ:

Q1. How can I choose the model that best meets my requirements?
A1. You can refer to our catalog to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameters, etc.

Q2. What information shall we give before placing a purchase order?
A2. a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor detail, etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.

Q3. What industries are your gearboxes being used in?
A3. Our gearboxes are widely used in automatic machinery and equipment in textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tobacco, environmental protection, logistics and other fields.
