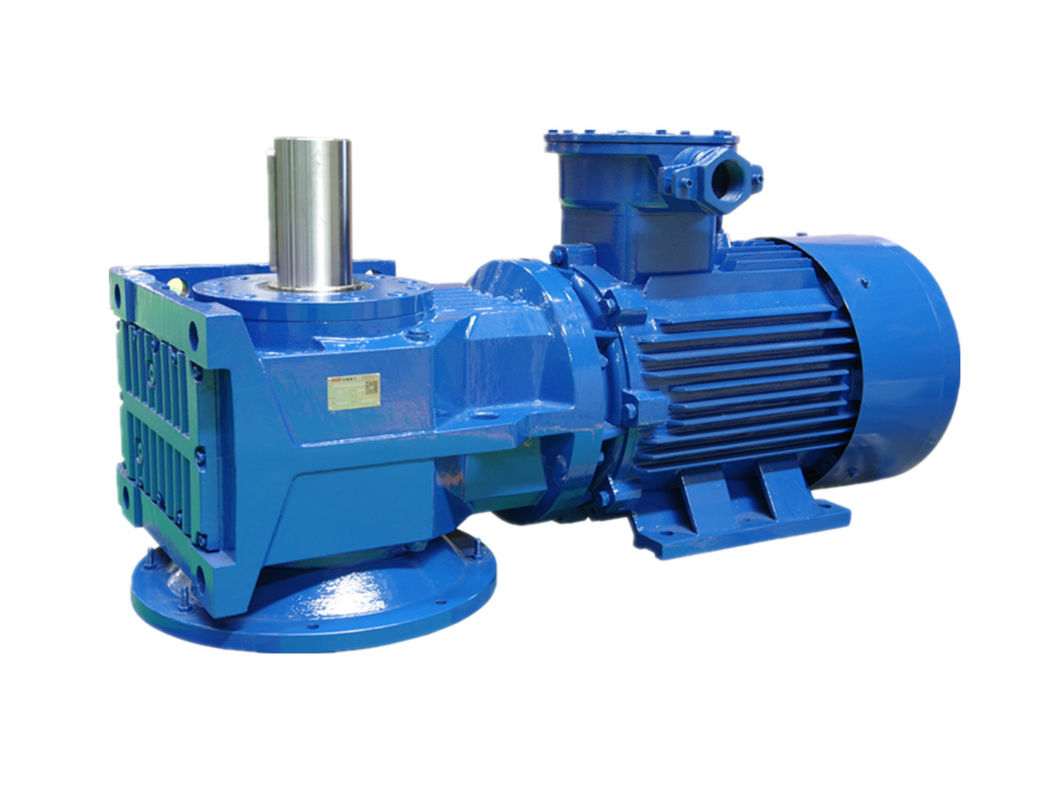

3600rpm Electric Motor Gear Reduction HT250 BKM Series

3600rpm Electric Motor Gear Reduction HT250 BKM Series

  • 3600rpm Electric Motor Gear Reduction HT250 BKM Series
3600rpm Electric Motor Gear Reduction HT250 BKM Series
Product Details:
Place of Origin: China
Brand Name: Shuowei
Certification: CE SGS ISO9001
Model Number: R series
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Wooden Case; Customized Packing Is Acceptable
Delivery Time: 5-8 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100 Piece Per Month
Contact Now
Detailed Product Description
Customized Support: OEM Gearing Arrangement: Helical
Input Speed: Less Than 3600RPM Product Name: Speed Reducer
Housing Material: HT250 High-strength Cast Iron Oil Seal: NAK Brand VITON Or NBR
High Light:

HT250 3600rpm electric motor gear reduction

,

HT250 electric motor gear reduction

,

HT250 BKM Series gear electric motor

BKM Series Speed Reducer Helical Bevel Gear Electric Motor Reductor Reduction Machine


The K Series Helical Bevel Geared Motor is designed with integral cast feet for base or end mounting and can be offered with single or double extended output shafts. Bevel Helical Geared Motor Units are also available shaft mounted or with output flanges and are available for mounting horizontally or vertically. The units can also be offered with a bolt on torque reaction bracket and all variants are available either motorized or with an input shaft assembly.


We are offerings series helical-worm geared motor

  1. output speed(r/min): 0.04-349
  2. output torque (n.m): top to 6500 motor
  3. power (kW): 0.12-22 -
  4. structures: foot-mounted, flange-mounted, with or without motor, shaft-input type for sprocket or pulley;
  5. transmission ratio: fine division, wide scope, and may combine different series to get larger ratio;
  6. the box body is made of high-strength cast iron. Gear and gear shaft adapts the gas carbonization, quenching and fine grinding process, therefore the bearing capacity of unit volume is high.
  7. high efficiency up to 98%per stage, low noise
Gear type Helical Gear
Gear & Gear Shaft Material 20 CrMnTi
Gear hardness HRC58~62
Solid & Hollow shaft material 42CrMo
Housing material HT250 High-strength Cast Iron
Gear precision DIN6
Bearing C&U ,HRB ,NSK, LYC ,ZWZ
Oil Seal NAK Brand VITON or NBR
Warranty 1 Year



The features of R Series Foot Mounted Speed Reducer

1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes (Such as R Series, UDL Series)R K S F helical gear motor



R Series Helical Gear Reducer



1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.



FAQ

Q1: I want to buy your products, how can I pay?
A: You can pay via T/T(30%+70%), L/C ,WEST UNION ,ESCROW etc. Especially ESCROW, which is guaranteed by Alibaba.com. It is safe and effective.
Q2: How can you guarantee the quality?
A: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection.
Q3: How we select models and specifications?
A: You can email us the series code (for example: R series helical gearbox) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice.
