Place of Origin: | China |
Brand Name: | Shuowei |
Certification: | CE SGS ISO9001 |
Model Number: | R series |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden Case; Customized Packing Is Acceptable |
Delivery Time: | 5-8 Work Days |
Payment Terms: | L/C, T/T |
Supply Ability: | 100 Piece Per Month |
Output Speed:: | 0.3~147 Rpm | Application: | Machine |
---|---|---|---|
Product Name: | Cycloid Gearbox Reducer | Input Speed: | Up To 2000rpm |
Gearing Arrangement: | Cycloidal | Material Of Gear: | 20CrMnTi With High Precision Grinding |
High Light: | 1400rpm cycloidal gear,0.3rpm cycloidal gear,Shaft Mounted helical gear reducer |

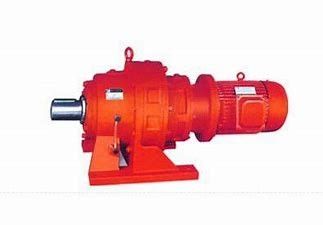

1400 Rpm Gear Motor Speed Reduce Cycloidal Speed Reducer
Cycloid Gearbox Reducer Main Features
Mounting Type: Tie rod Hanging shaft mounted
Output Shaft: Single key hollow shaft, each model can select three hollow diameter at most.
Gearbox Housing: Hard Iron Steel, can be used outside.
Anti-slip device: Can suit for any model, It's very convenient to be mounted.
Cycloid Gearbox Reducer Parameters:
Models
|
Power
|
Ratio
|
Max. Torque
|
Output Shaft Dia.
|
Input Shaft Dia.
|
1 Stage
|
|||||
X2(B0/B12)
|
0.37~1.5
|
9~87
|
150
|
Φ25(Φ30)
|
Φ15
|
X3(B1/B15)
|
0.55~2.2
|
9~87
|
250
|
Φ35
|
Φ18
|
X4(B2/B18)
|
0.75~4.0
|
9~87
|
500
|
Φ45
|
Φ22
|
X5(B3/B22)
|
1.5~7.5
|
9~87
|
1,000
|
Φ55
|
Φ30
|
X6(B4/B27)
|
2.2~11
|
9~87
|
2,000
|
Φ65(Φ70)
|
Φ35
|
X7
|
3.0~11
|
9~87
|
2,700
|
Φ80
|
Φ40
|
X8(B5/B33)
|
5.5~18.5
|
9~87
|
4,500
|
Φ90
|
Φ45
|
X9(B6/B39)
|
7.5~30
|
9~87
|
7,100
|
Φ100
|
Φ50
|
X10(B7/B45)
|
15~45
|
9~87
|
12,000
|
Φ110
|
Φ55
|
X11(B8/B55)
|
18.5~55
|
9~87
|
20,000
|
Φ130
|
Φ70
|
Cycloid Gearbox Reducer applied for
- Belt conveyor drives
- Bucket elevator drives
- Agitator drives
- Hoisting gear drives
- Travelling gear drives
- Paper machine drives
- Dryer drives
- Water screw drives
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High-quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
FAQ:
Q1. How can I choose the model that best meets my requirements?
A1. You can refer to our catalog to choose the gearbox or we can help to choose when you provide the technical information of required output torque, output speed and motor parameters, etc.
Q2. What information shall we give before placing a purchase order?
A2. a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor detail, etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
Q3. What industries are your gearboxes being used in?
A3. Our gearboxes are widely used in automatic machinery and equipment in textile, food processing, beverage, chemical industry, escalator, automatic storage equipment, metallurgy, tobacco, environmental protection, logistics and other fields.
